HDPE Geomembrane – Factory Wholesale
Roll length: 50m, 100m, 150m, 200m, 210m, which can be customized
Roll width: 3m, 5.8m, 6m, 7m, 8m, which can be customized
Application Scope
Environmental Engineering: Landfill liners, wastewater treatment tanks, hazardous waste containment.
Water Conservancy Engineering: Seepage control for reservoirs, canals, and dams; leak prevention for artificial lakes and scenic water bodies.
Mining Engineering: Tailings pond liners, heap leach pad liners.
Agriculture: Biogas digester liners, livestock wastewater treatment.
Transportation Engineering: Waterproofing and isolation for tunnels and roadbeds.
Feartures: Antibacteria, Self cleaning, Uv resistence, Fire retardent, heat insulation, Colour fastness, Smooth surface, 100% waterproof
Product Introduction

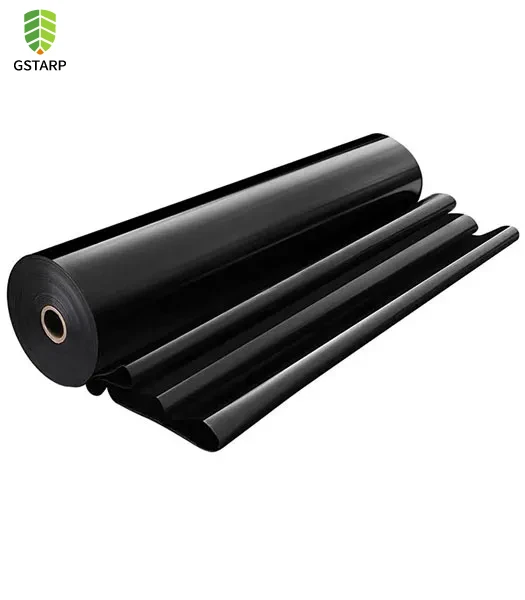

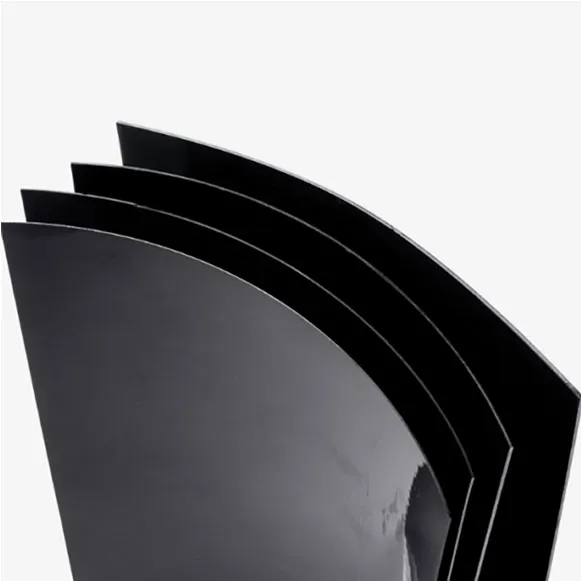

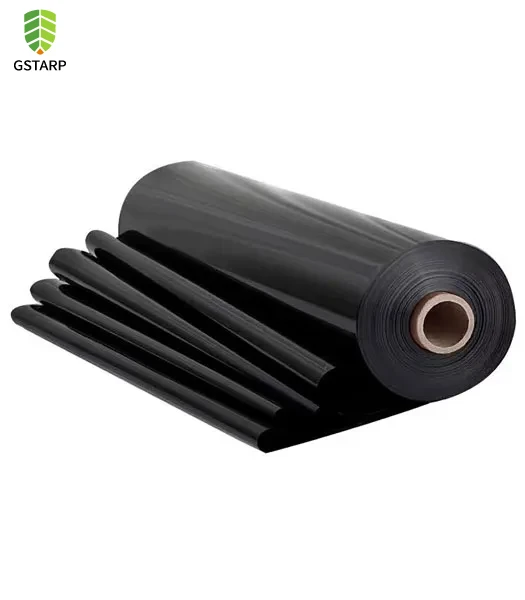

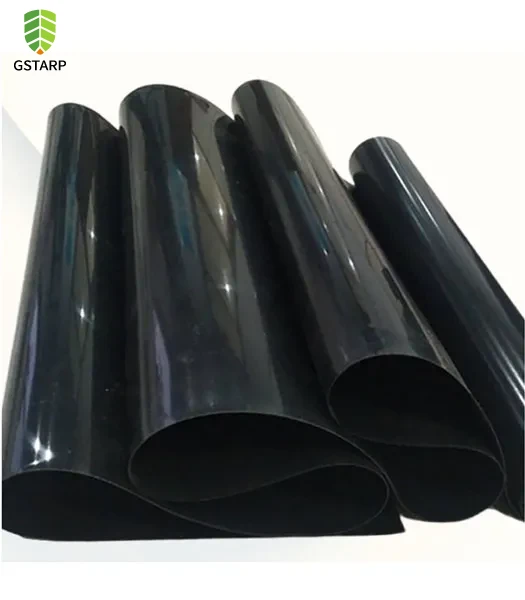

A double-sided, uniformly flat and smooth HDPE geomembrane manufactured using blow molding/cast film processes from specially formulated virgin resin.
Product Specifications
Thickness: 1.0–3.0 mm
Width: 1–8 m
Length: As per project design and customer requirements.
Product Features
1. Excellent flexibility with high impermeability coefficient;
2. Superior heat and cold resistance, suitable for a wide operating temperature range (-70°C to 110°C);
3. Strong chemical stability, resistant to strong acids and alkalis with robust anti-corrosion properties;
4. Exceptional weather resistance and aging resistance;
5. High tensile strength and elongation at break with strong strain capacity, suitable for diverse harsh geological and climatic conditions, particularly effective in areas with uneven ground settlement.

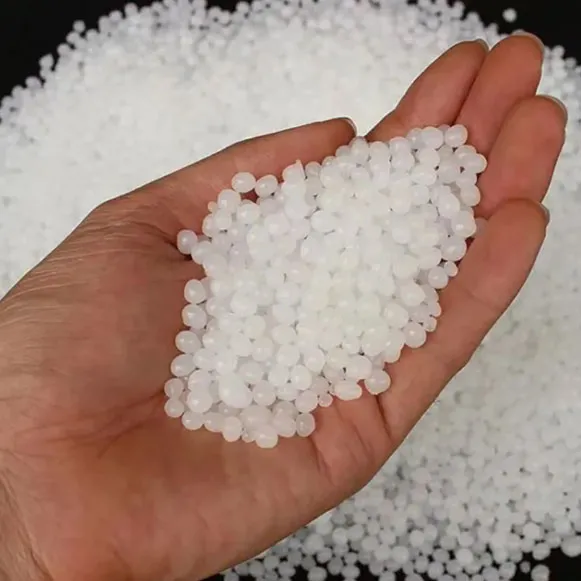

Our HDPE geomembrane is engineered for heavy-duty containment applications, manufactured from high-density polyethylene resin with crystallinity reaching eighty to ninety-five percent, providing exceptional strength and chemical resistance. As a leading geomembrane liner manufacturer, we deliver reliable HDPE liner solutions for landfill liner, pond liner, and mining liner projects worldwide.
The material incorporates carbon black for enhanced UV resistance and extended outdoor lifespan, antioxidants preventing oxidative degradation during high-temperature processing, and anti-aging agents resisting UV, ozone, and environmental factors. Custom color masterbatch is available for green, blue, and other specialized film requirements.

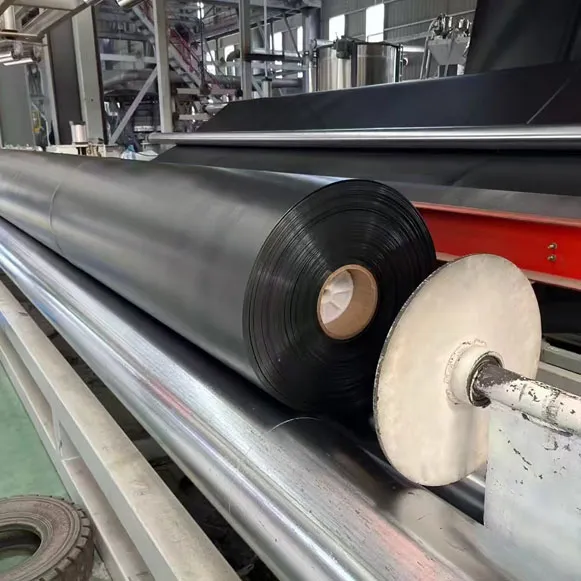

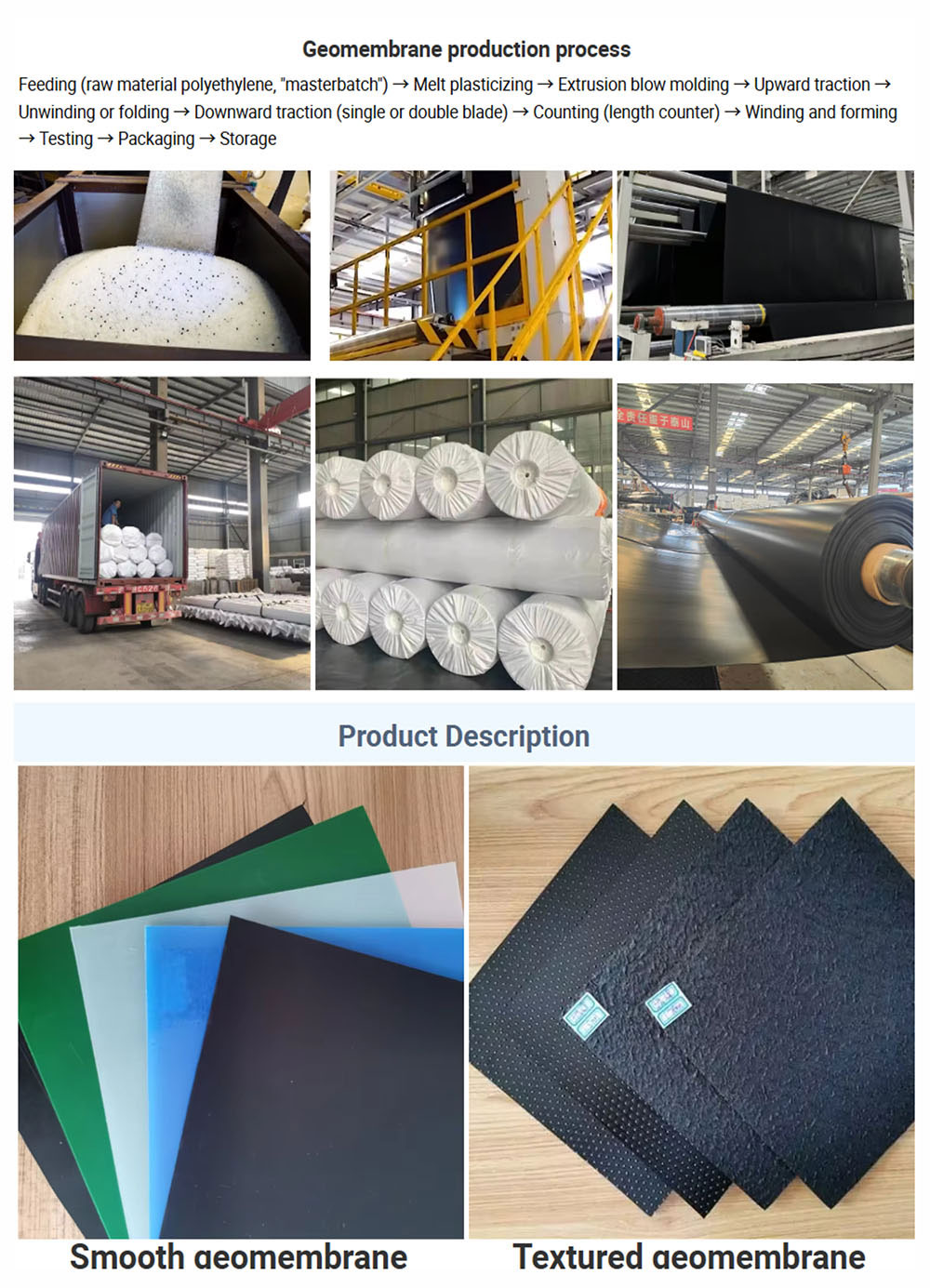

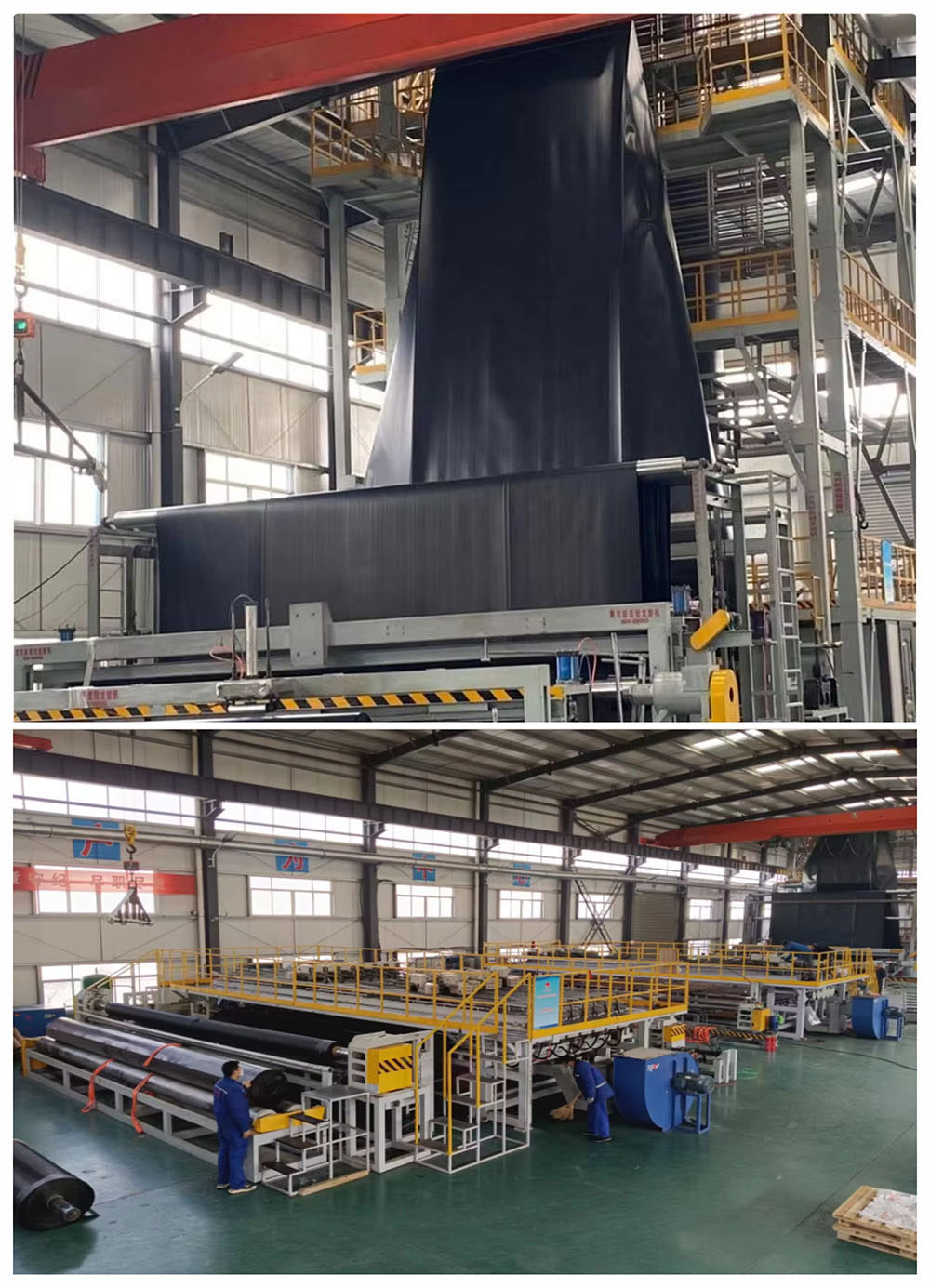

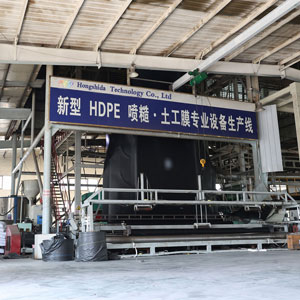

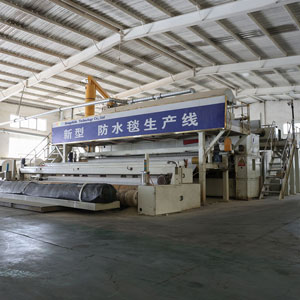

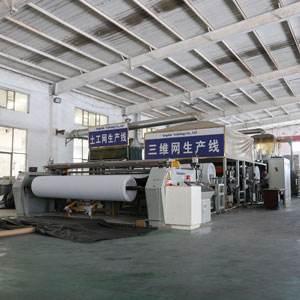

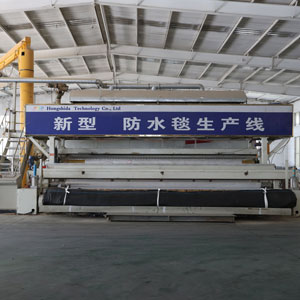

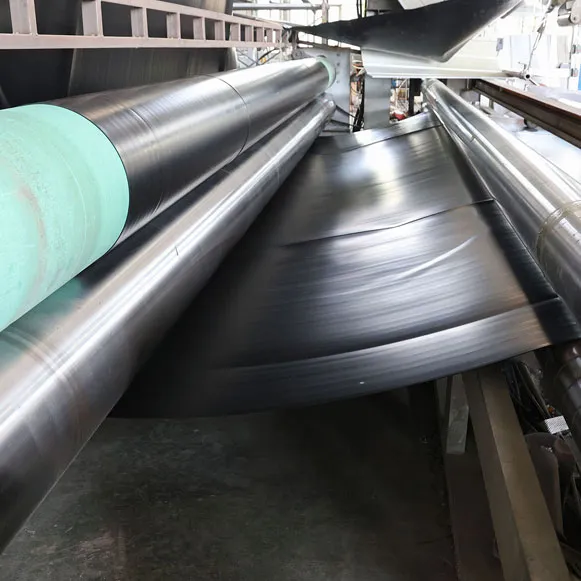

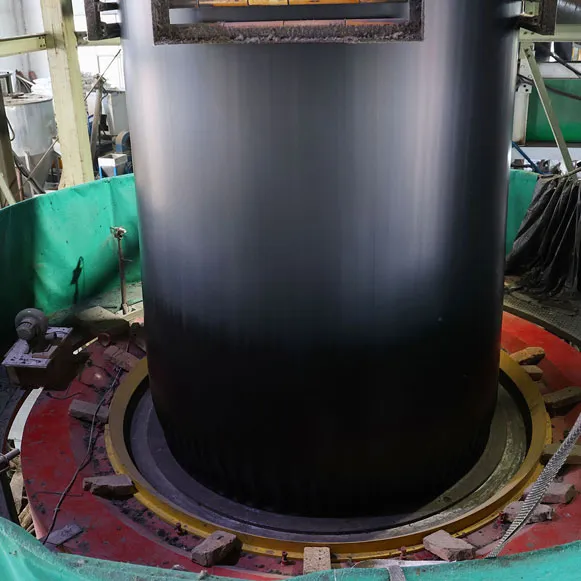

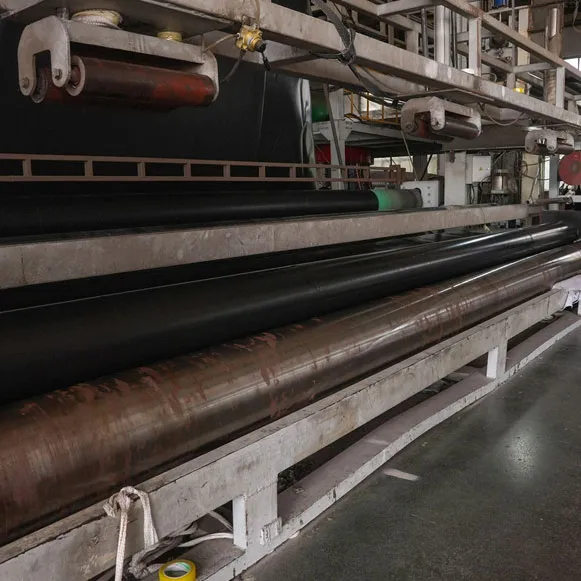

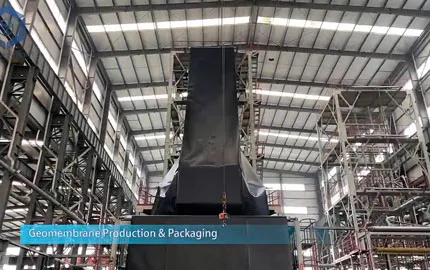

Production utilizes either blow molding or casting processes. Raw materials undergo pretreatment, mixing, and melt extrusion before forming, cooling, traction, and coiling. Each stage includes strict quality inspection to ensure dimensional accuracy and material integrity. Available in thicknesses from zero point three to three point zero millimeters, widths from one to eight meters, and lengths produced according to engineering design requirements.

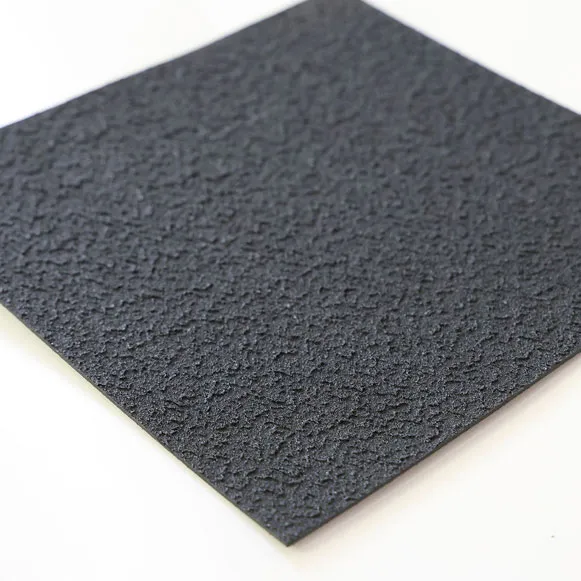

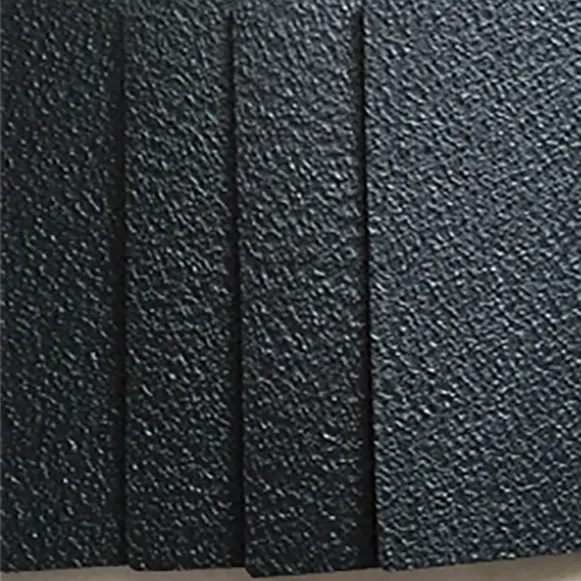

The high crystallinity structure delivers excellent resistance to stress cracking and thermal aging, while carbon black dispersion ensures long-term weatherability. Available as smooth geomembrane for uniform barrier applications or textured geomembrane for enhanced slope stability. Textured HDPE geomembrane variants provide increased friction angles with geotextiles and soils.

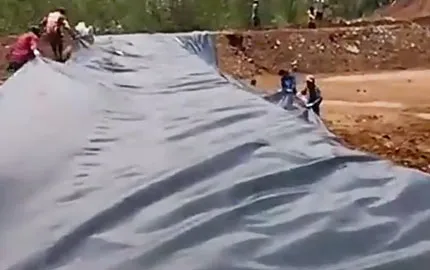

Suitable for environmental engineering including landfills, sewage treatment plants, and tailings ponds; water conservancy projects such as reservoirs, canals, and dams; agricultural sectors including aquaculture and irrigation systems; municipal construction for underground engineering and artificial wetlands; energy and chemical industries; and transportation engineering for subgrades and runways. Field seams utilize extrusion welding and hot wedge welding techniques, with construction quality assurance protocols ensuring long-term performance for waste containment and water reservoir applications.
| Impermeable membrane roll size | |||||||||
| Roll length m | The common size is 50m, 100m, 150m, 200m, 210m, which can be customized according to the actual situation of the project without additional cost | ||||||||
| Roll width m | The commonly used size is 3m, 5.8m, 6m, 7m, 8m, which can be customized according to the actual situation of the project without additional cost | ||||||||

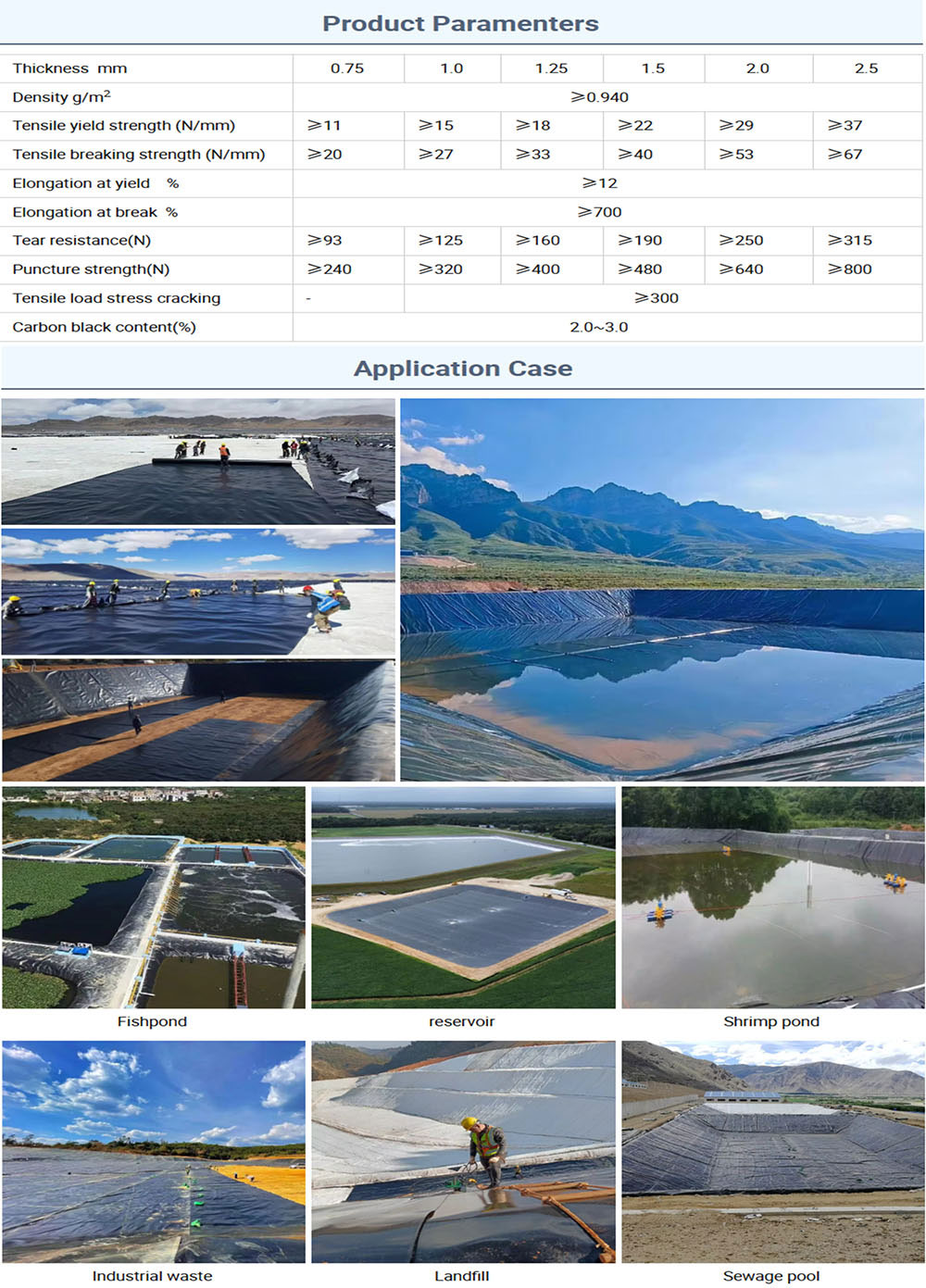

| Properties | Test | Test Value | Testing Frequency | ||||||
| Method | 0.75 mm | 1.00 mm | 1.25 mm | 1.50 mm | 2.00 mm | 2.50 mm | 3.00 mm | (minimum) | |
| Thickness - (min. ave.) - mm | D5199 | nom. | nom. | nom. | nom. | nom. | nom. | nom. | per roll |
| • lowest individual of 10 values - % | -10 | -10 | -10 | -10 | -10 | -10 | -10 | ||
| Formulated Density (min. ave.) - g/cc | D 1505/D 792 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 90,000 kg |
| Tensile Properties (1) (min. ave.) | D 6693 | 11 | 15 | 18 | 22 | 29 | 37 | 44 | 9,000 kg |
| • yield strength - kN/m | Type IV | 20 | 27 | 33 | 40 | 53 | 67 | 80 | |
| • break strength - kN/m | 12 | 12 | 12 | 12 | 12 | 12 | 12 | ||
| • yield elongation - % | 700 | 700 | 700 | 700 | 700 | 700 | 700 | ||
| • break elongation - % | |||||||||
| Tear Resistance (min. ave.) - N | D 1004 | 93 | 125 | 156 | 187 | 249 | 311 | 374 | 20,000 kg |
| Puncture Resistance (min. ave.) - N | D 4833 | 240 | 320 | 400 | 480 | 640 | 800 | 960 | 20,000 kg |
| Stress Crack Resistance (2) - hr. | D 5397 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | per GRI GM-10 |
| (App.) | |||||||||
| Carbon Black Content (range) - % | D 4218 (3) | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 2.0-3.0 | 9,000 kg |
| Carbon Black Dispersion | D 5596 | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | note (4) | 20,000 kg |
| Oxidative Induction Time (OIT) (min. ave.) (5) | D 8117 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 90,000 kg |
| (a) Standard OIT - min. | D 5885 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
| — or — | |||||||||
| (b) High Pressure OIT - min. | |||||||||
| Oven Aging at 85°C (5), (6) | D 5721 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | per each |
| (a) Standard OIT (min. ave.) - % retained after 90 days | D 8117 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | formulation |
| — or — | D 5885 | ||||||||
| (b) High Pressure OIT (min. ave.) - % retained after 90 days | |||||||||
Durable
Long life
Anti mold
Anti-static
Recyclable
Vivid colour
Air tightness
Antibacteria
Self cleaning
Uv resistence
Anti-bacterial and anti-mold: Using special chemical additives, we ensure that all our products have good anti-bacterial and anti-mold effects, do not produce mold in humid and warm environments, maintain the stability of the surface, and do not produce unpleasant odors, prolonging the use of the life of the product.
Anti algae: GS PVC vinyle is often used in the field of water-contact areas, especially for water storage containers, aquaculture, fish farming, are required to prevent algae, in the manufacturing of the upper and lower bottom molds, GS has specially added additives to prevent algae, so the tarpaulin is algae-proof.
100% waterproof: GSTARP are 100% waterproof, in which the special surface treatment is the first step of PVC fabric defense, to ensure that no water molecules can penetrate, followed by the upper and lower surface layer and the basic completely combined to form a whole. Finally, through the base fabric coating glue, glue and coating molecular bonding, through the above three steps cash technology, GS PVC vinyl is 100% waterproof.
Acid resistance: GSTRP factory produce PVC fabric by lamination or coating, our equipment is imported from Germany, with advanced techniques, during the manufacturing process of PVC FABRIC, specialized additives are added to make the product acid resistant. Customers can use it to store substances containing acids and alkalis.
Tarpaulin truck, tarped step deck trailer, truck tarpaulin, truck bed tarp, trucking tarps, tarpaulin covered truck, pickup bed tarp, flatbed truck tarps, truck bed tarp cover, semi truck tarps, canvas truck bed cover, pickup truck tarps, tarpaulins and covers, truck bed tarp cover, tarpaulin cover, pool cover tarp, cover tarpaulin, trailer tarpaulin covers.

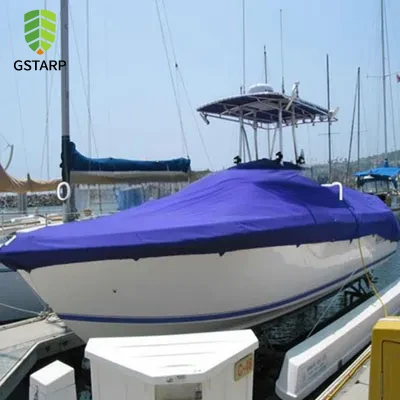

Equipment cover, Truck canopies, Pickup truck cover, Asphalt truck covers, Truck bed cover, Dump truck tarps, train cargo tarpaulin, container cover, pallet cover tarp, boat cover fabric, caravan awnings, PVC side curtain fabric.
