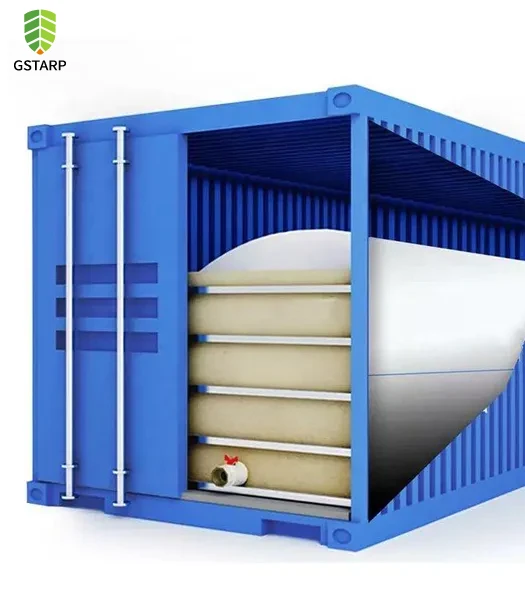

Container Flexitank – Factory wholesale
Structure: 1 layer PP + 3 layers PE
Capacity: 24,000 liters
PP Valve: 3” ball valve for loading & discharge
Size: 3.95 x 7.45m
Application: Wine and grape juice bulk transport、Edible oil (palm, soybean, olive) shipping、Fruit juice concentrate logistics、Food grade liquid transportation、Lubricating oil and base oil shipping、Industrial gear oil bulk transport、Transformer oil logistics、Hydraulic oil container shipping、Chemical plasticizers transportation、Synthetic resins and latex shipping、Glycerin and polyols bulk transport、Ethylene glycol and propylene glycol logistics、Surfactants and detergent raw materials shipping、Mineral water and potable water transport、Malt extract and syrup shipping、Sorbitol and amino acid solutions transport、Coconut oil and vegetable oil logistics、White oil and process oil shipping、Urea and salt solutions transport、Waste liquid and by-product collection.
Features: Antibacteria, Self-cleaning, UV resistance, Fire retardant, Heat insulation, Colour fastness, Smooth surface, 100% waterproof.

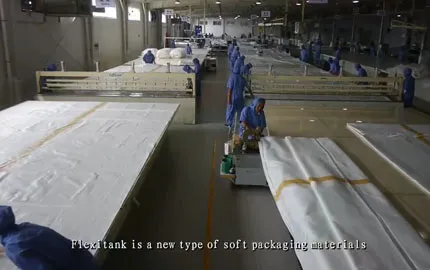

We are a professional container flexitank manufacturer specializing in innovative bulk liquid transport solutions for global clients. With over a decade of industry experience and an annual production capacity exceeding 400,000 units, we offer comprehensive OEM/ODM services to partners worldwide. Our flexitank products hold a global market share of 25%, trusted by leading brands across food, chemical, and industrial sectors.

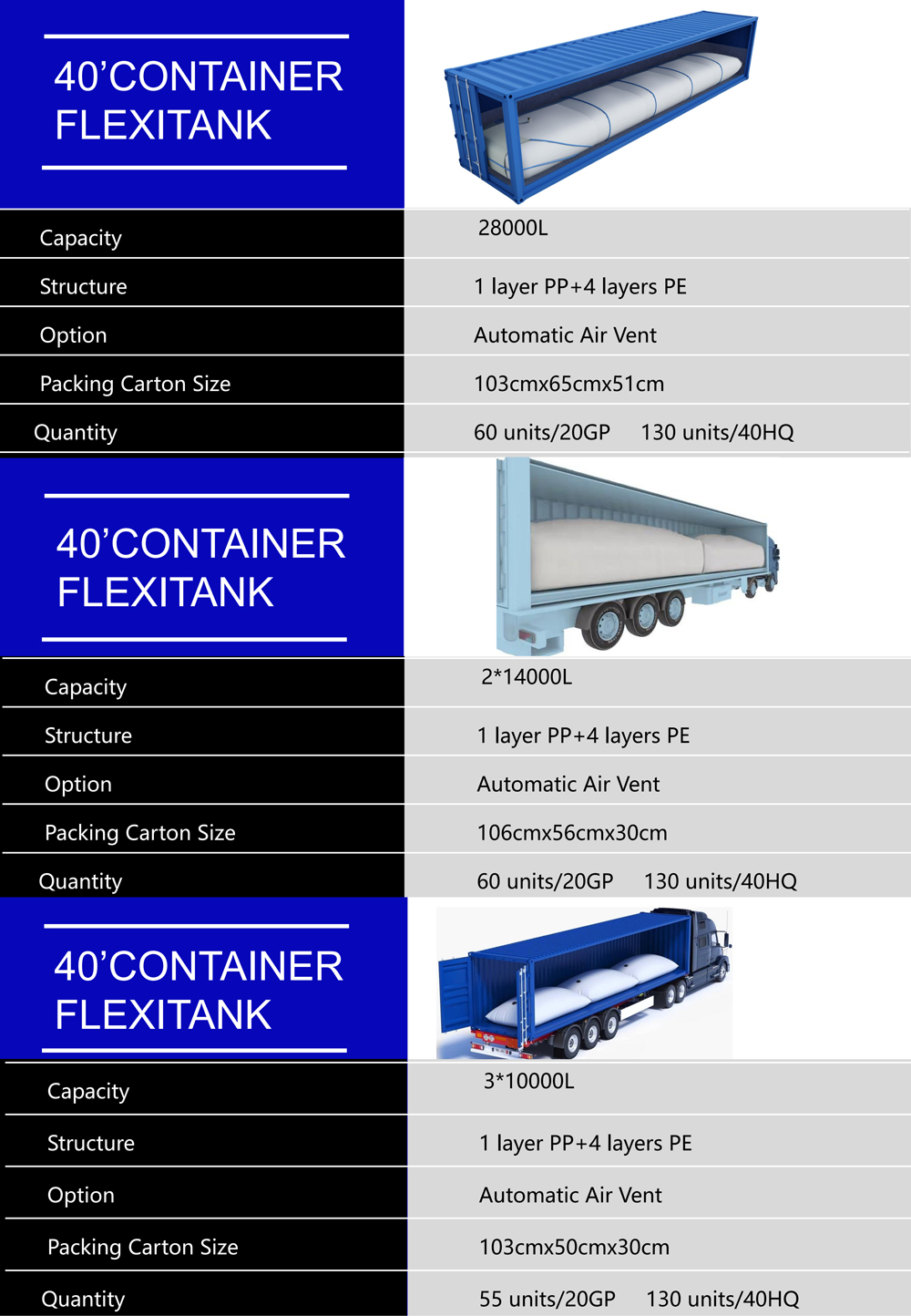

As a leading flexitank factory, we manufacture various bulk liquid container bag configurations for non-hazardous liquids. Our food grade flexitank series handles edible oils, fruit juices, wine, and syrups. The chemical flexitank range transports lubricants, glycerin, latex, and industrial oils. Available structures include 1+3 flexitank (1 layer PP + 3 layers PE) and 1+4 flexitank for enhanced protection. Capacities range from 14,000 to 26,000 liters, maximizing container payload up to 24 tons per 20ft unit.

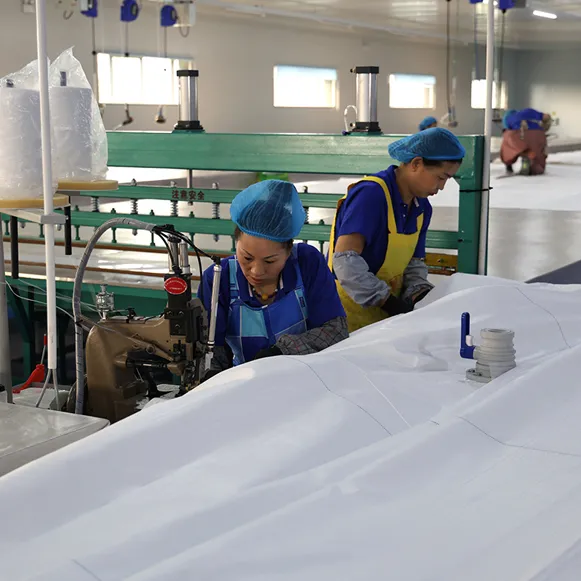

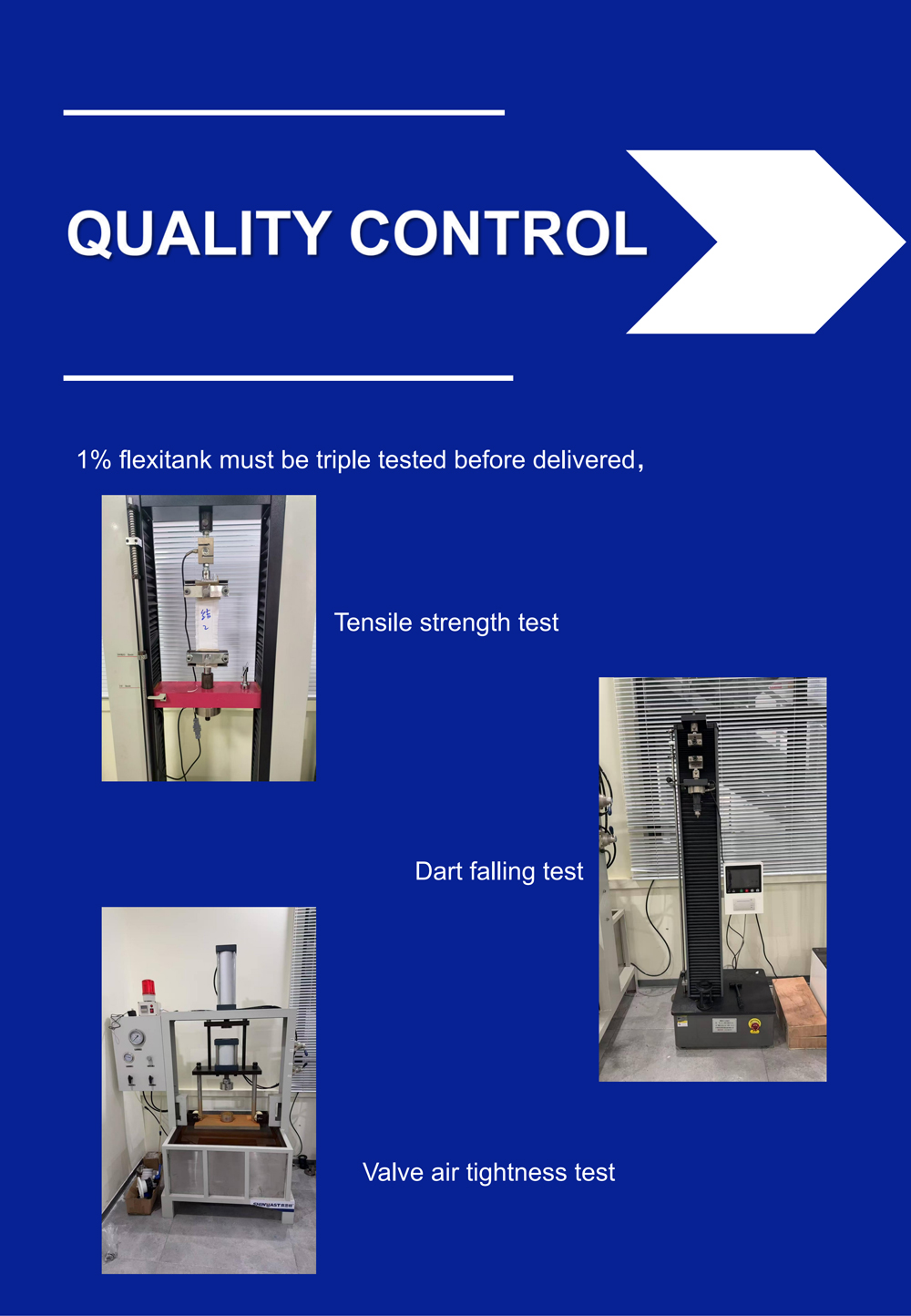

Our flexitank manufacturer facility implements whole-process quality management. Materials include 180gsm PP woven fabric outer layer and 125-micron PE inner films, meeting PAS 1008:2016 standards for tensile strength, seal strength, and impact resistance. Each flexitank undergoes triple testing: valve vacuum test, ultrasonic vibration test, and dart falling test before shipment. Certifications include ISO9001, FSSC22000, Halal, Kosher, and FDA compliance.
Structure: 1 layer PP + 3-4 layers PE co-extruded film
Valve: 3-inch polypropylene ball valve or butterfly valve

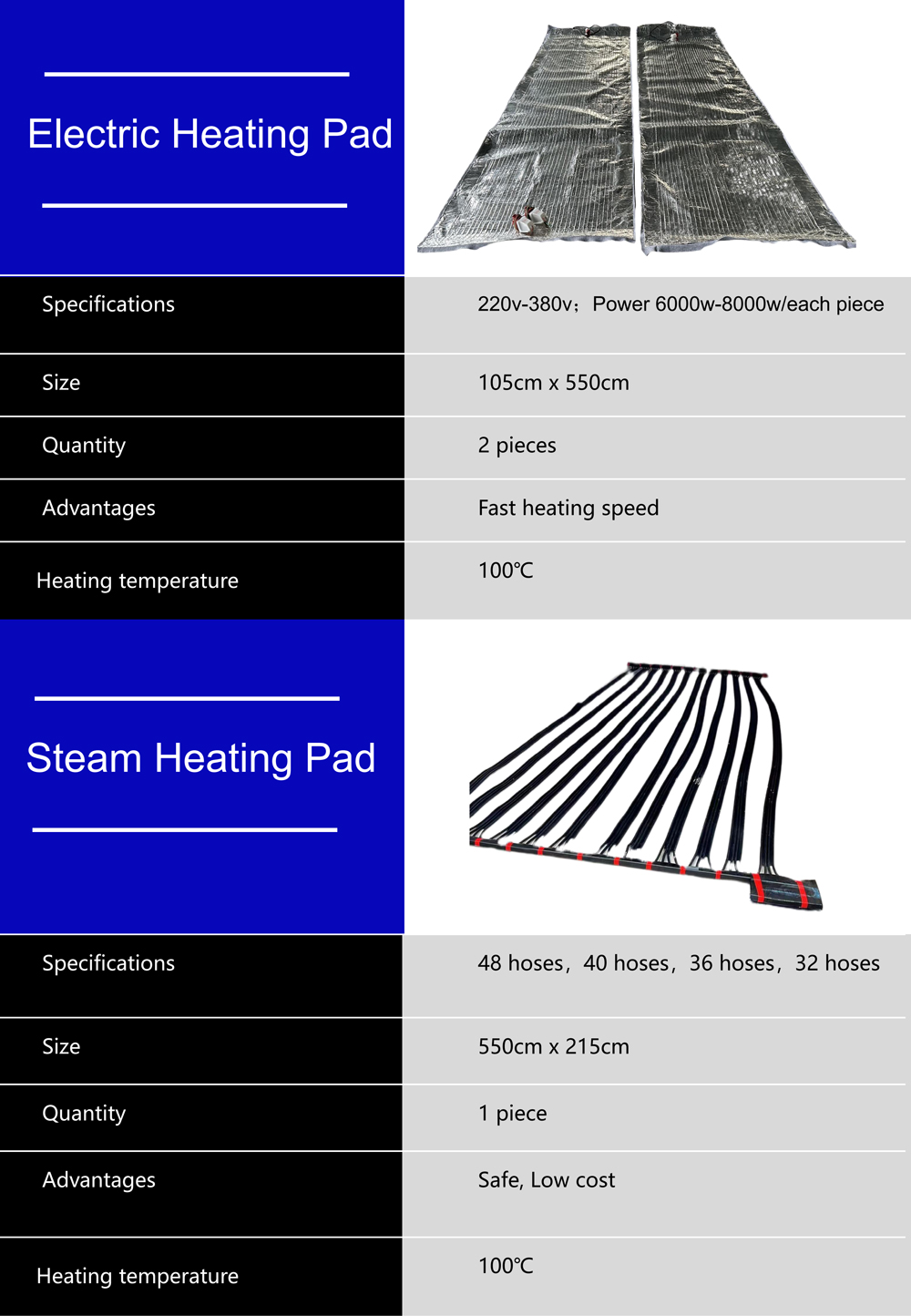

Temperature Range: -20°C to 60°C (standard), up to 120°C with heating pads
Accessories: Steel pipes (5 pieces/set), cardboard bulkhead (14-layer corrugated), corrugated paper roll OEM/ODM Services
We offer complete customization including custom sizes, valve types, printed logos, and specialized designs. Our global service network covers over 100 countries with 24-hour emergency response. Contact us today for factory-direct pricing.

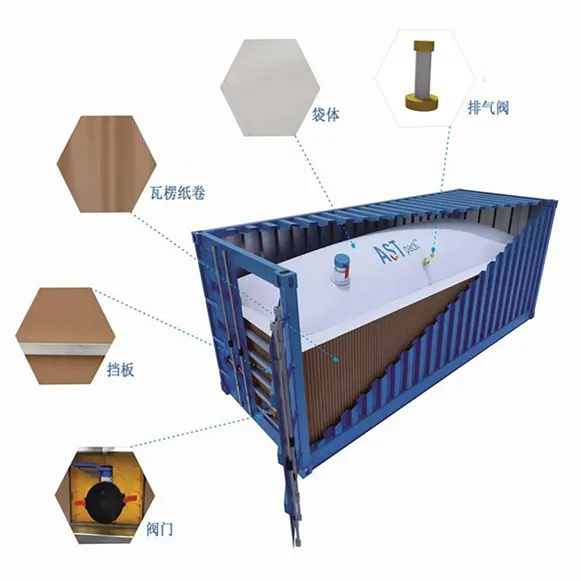

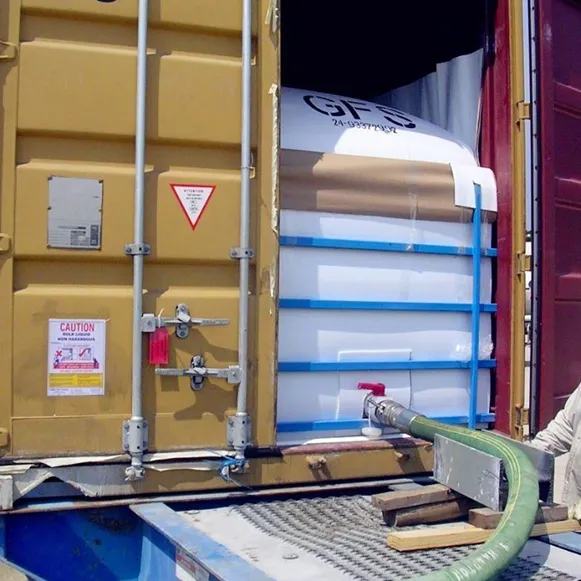

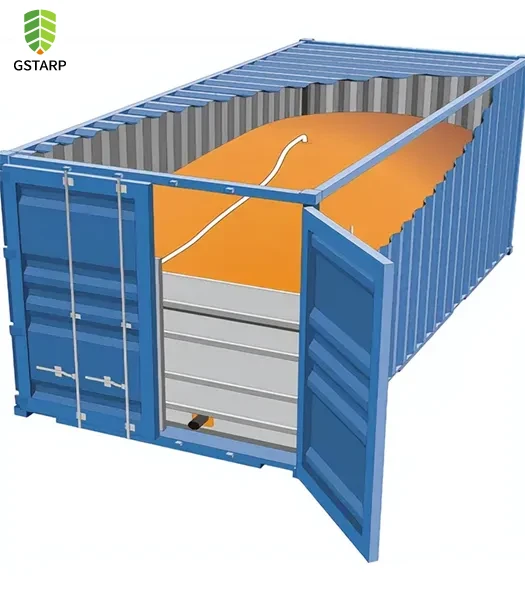

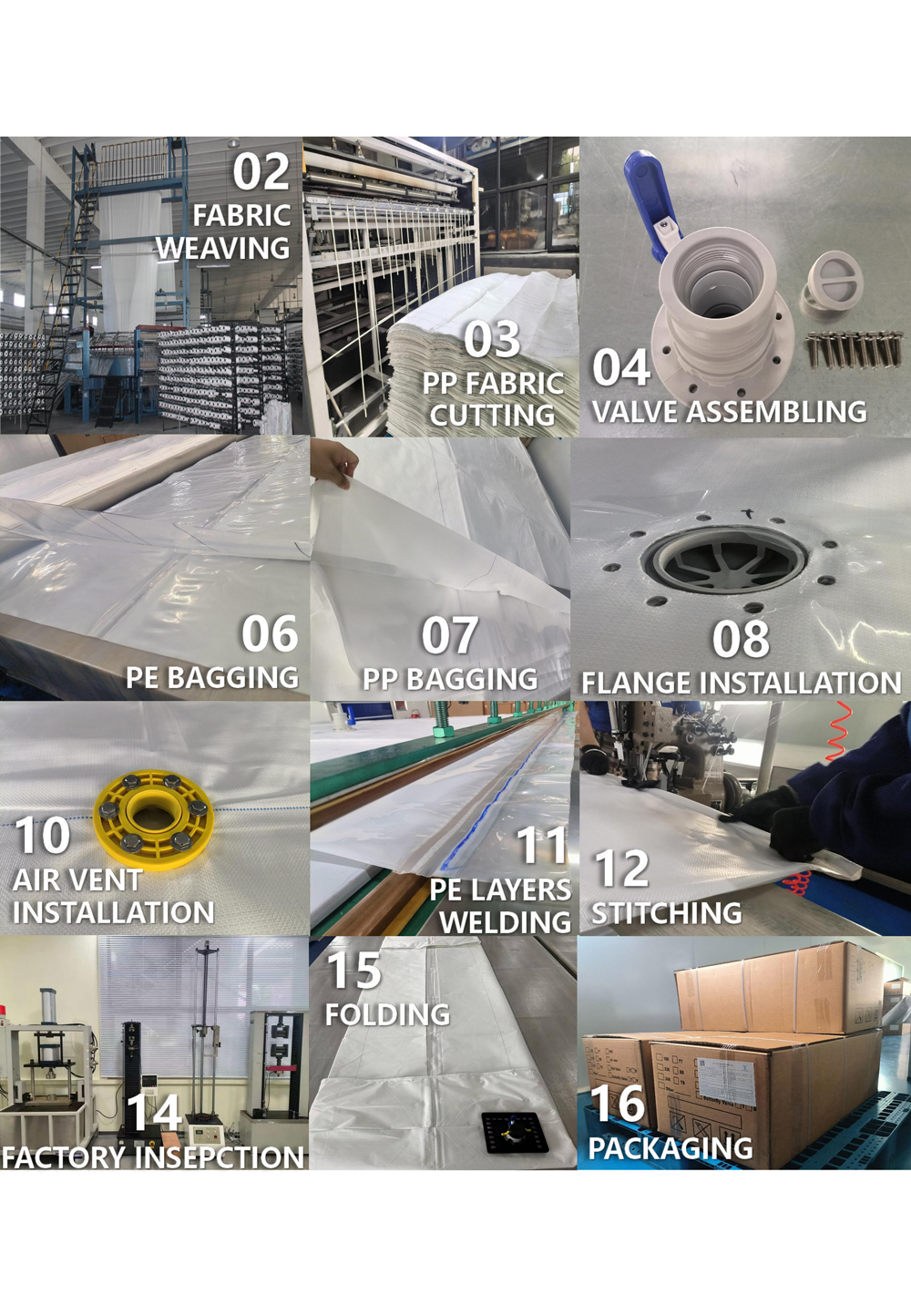

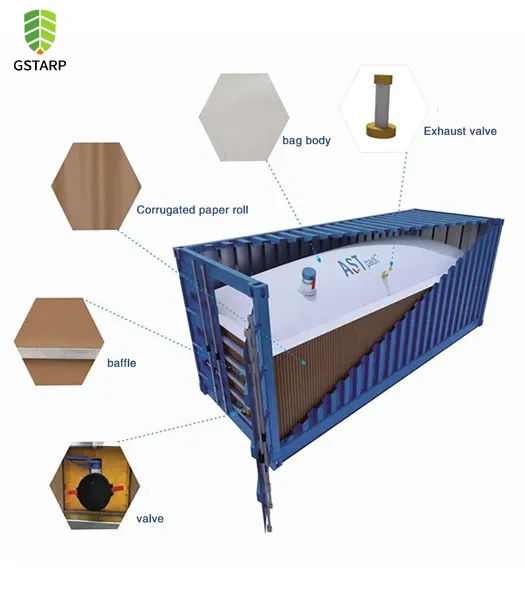

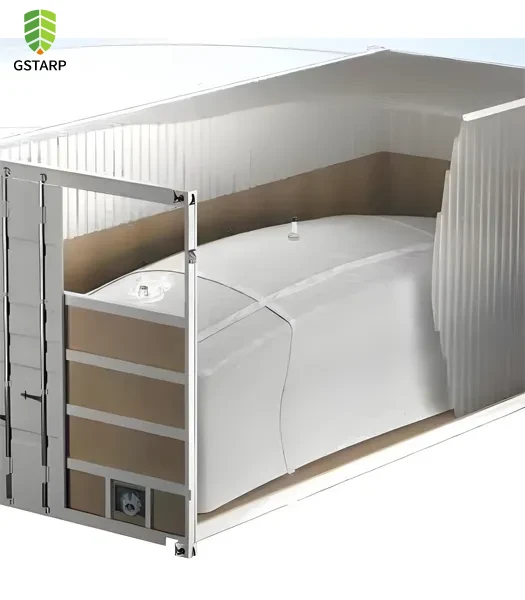

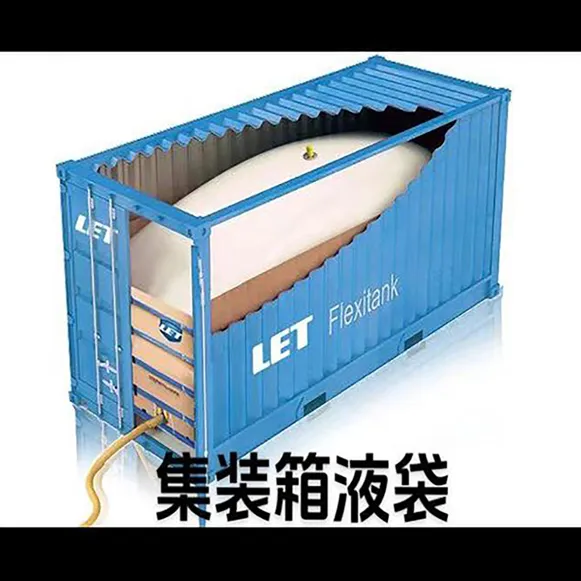

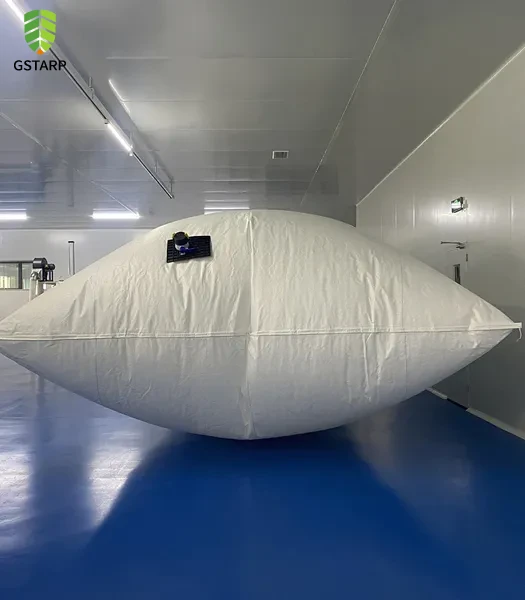

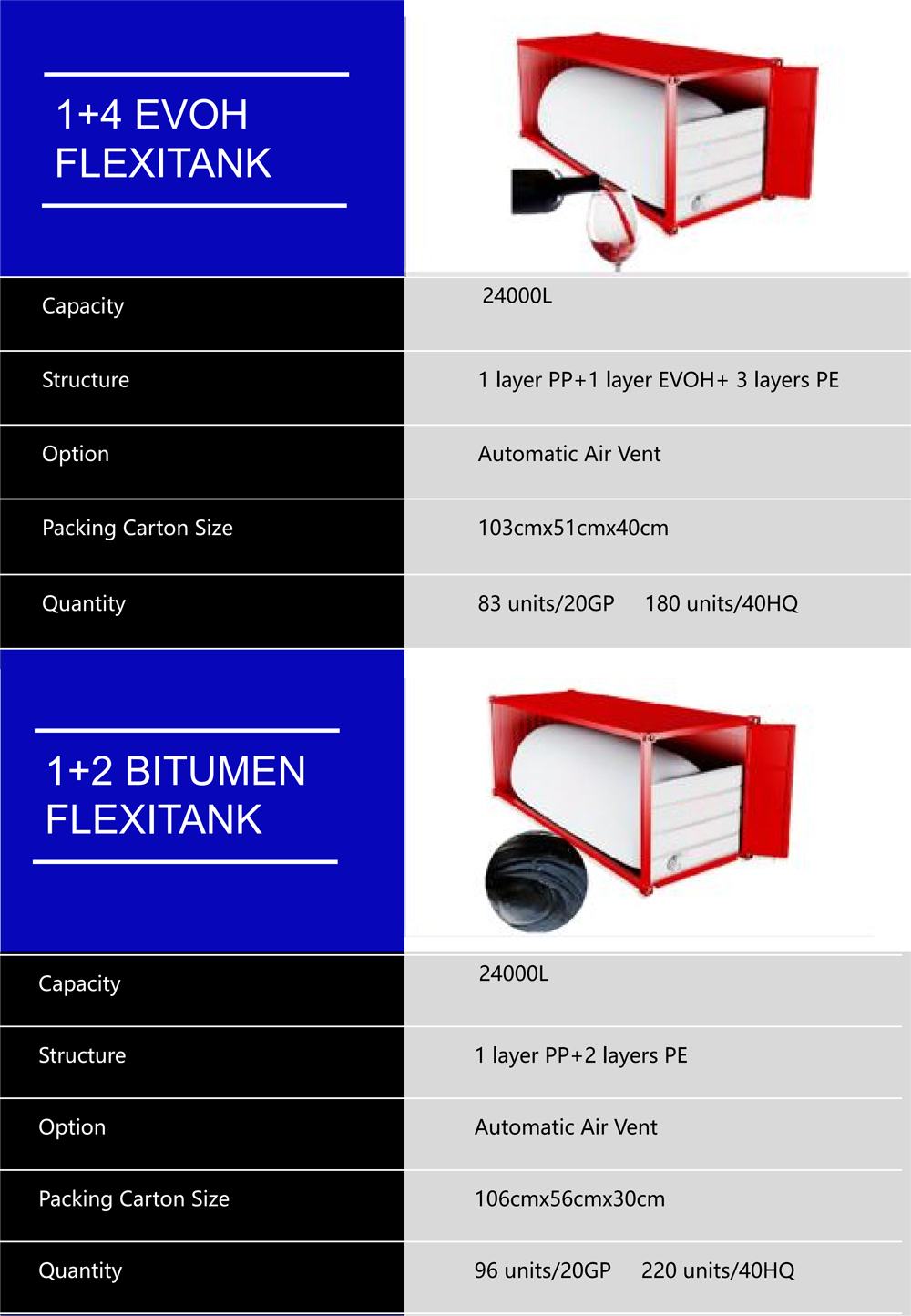

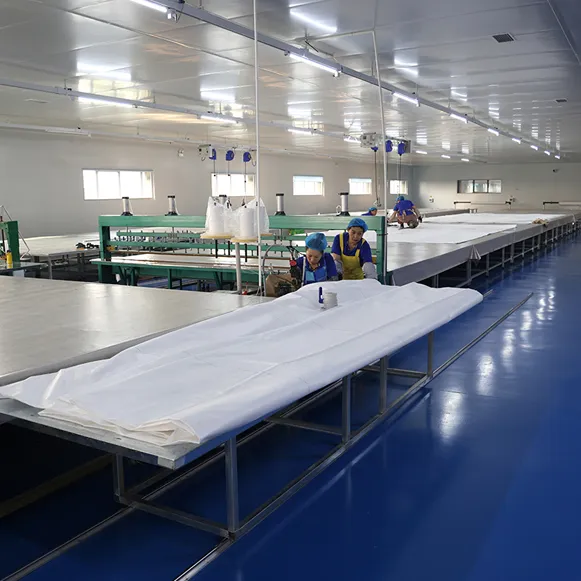

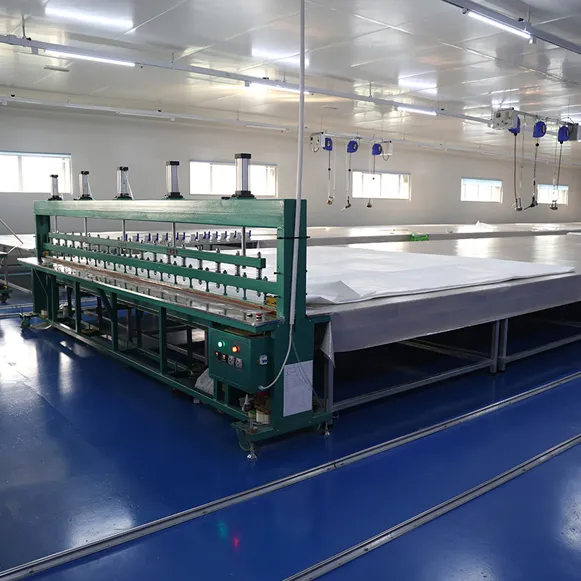

Our container flexitank is engineered for heavy-duty bulk liquid transport, manufactured through a multi-layer co-extrusion and high-frequency welding process. The structure consists of one outer layer of 180gsm woven polypropylene fabric for tensile strength and puncture resistance, combined with three or four inner layers of 125-micron polyethylene film ensuring complete leak-proof containment. For oxygen-sensitive liquids, an EVOH barrier layer is available.
All seams are molecularly bonded using ultrasonic welding technology, achieving seal strength exceeding 80 Newtons. The 3-inch polypropylene ball valve is vacuum-tested for airtight performance. Each flexitank undergoes triple testing—valve vacuum test, ultrasonic vibration test, and dart falling impact test—to meet PAS 1008:2016 standards. Reinforced with steel pipes and corrugated cardboard bulkheads, the system withstands dynamic forces during transit. Operating temperatures range from -20°C to 85°C, with optional heating pads for high-viscosity cargo. Capacities from 14,000 to 26,000 liters maximize container payload up to 24 tons.

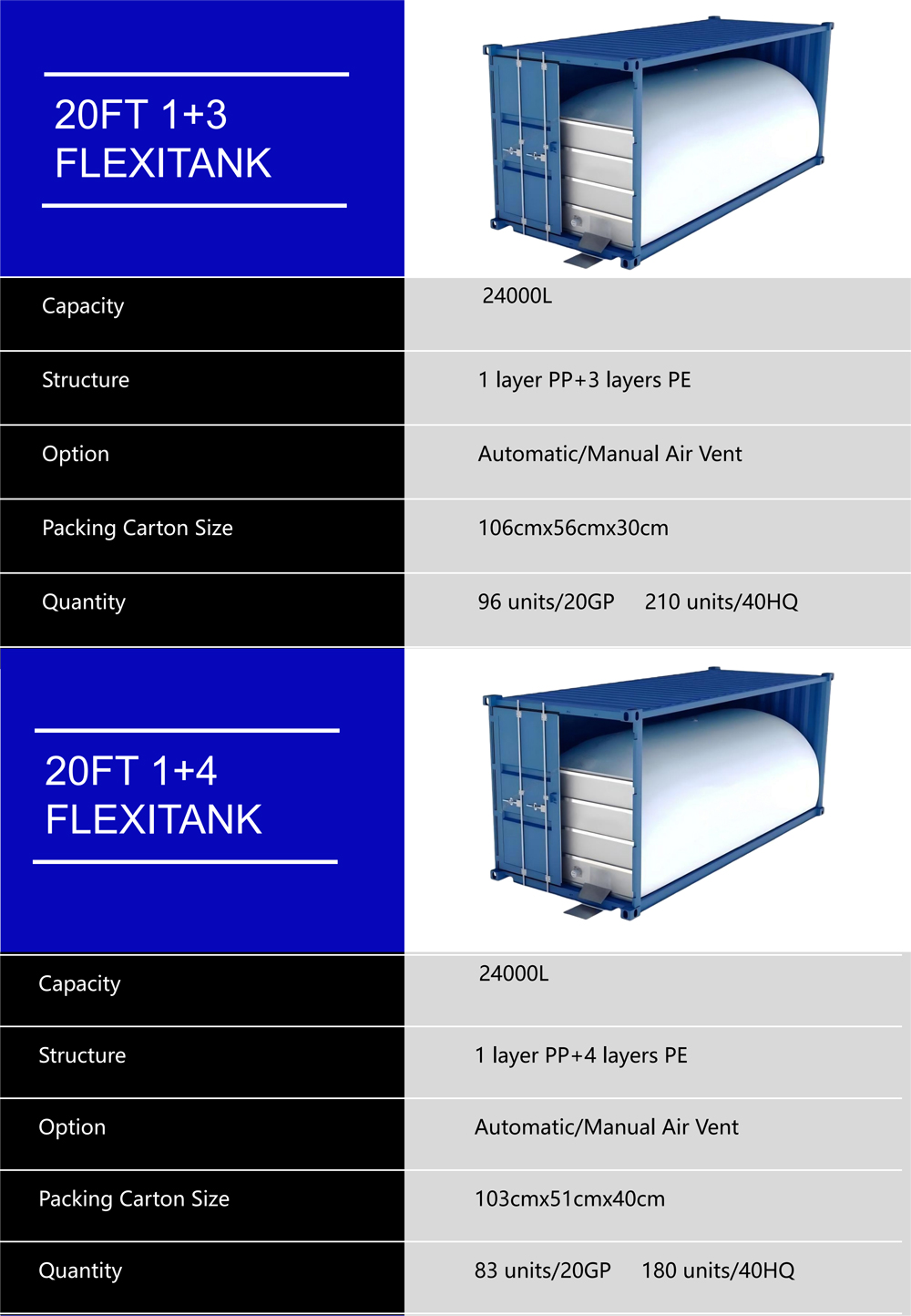

| 1+3 Flexitank Specification | |||
| Flexitank Parameters | |||
| Structure | 1 layer PP+3 layers PE | ||
| Capacity | 24,000 liters | ||
| PP Valve | 3” ball valve for loading & discharge | ||
| Size | 3.95x7.45m | ||
| Temperature Bearing | -10℃ ~ 85℃ | ||
| Packing carton size | 106cmx56cmx30cm | ||
| Gross weight | 40kg | ||
| PP fabric | 180gsm | ||
| PE liner | 125 microns*3 layers | ||
| Qty | 96 units/20GP& 210 units/40HQ | ||
| Technical Parameters | |||
| Inner PE Film | |||
| TEST ITEM | TEST STANDARD | STANDARD | |
| Thickness | PAS1008：2016 | 125 microns | |
| Tensile Strength | PAS1008：2016 | 41Mpa | |
| Elongation at break | PAS1008：2016 | 898% | |
| Seal strength | PAS1008：2016 | ≥80N | |
| Outer PP Fabric | |||
| TEST ITEM | TEST STANDARD | STANDARD | |
| Warp strength（N） | PAS1008：2016 | 1946N/50mm | |
| Weft strength（N） | PAS1008：2016 | 2432N/50mm | |
| Warp Elongation at Break (MD %) | PAS1008：2016 | 21.3% | |
| Weft Elongation at Break (TD %) | PAS1008：2016 | 25.2% | |
| Stitching strength | PAS1008：2016 | 564N/50mm | |
| Accessories | |||

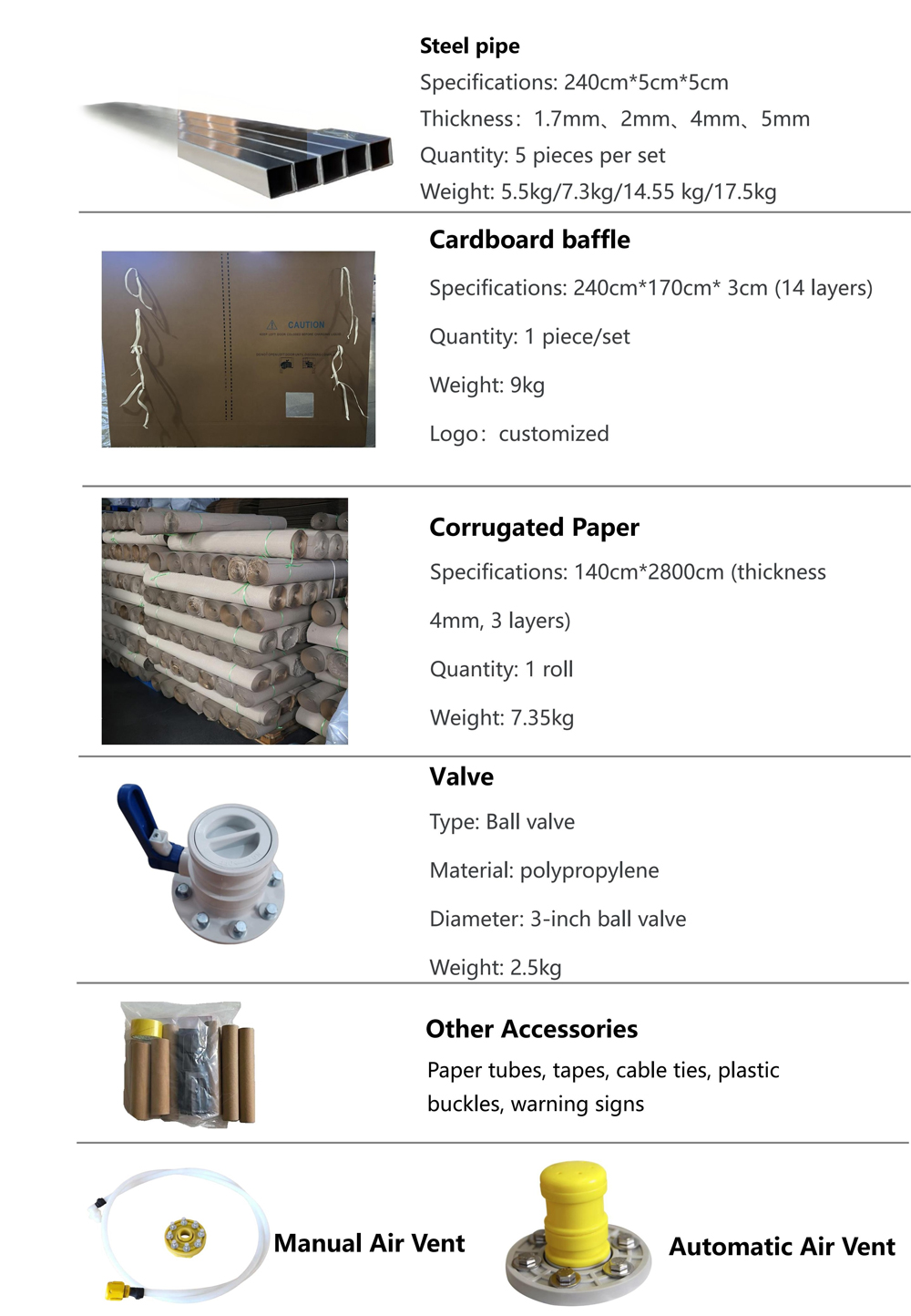

 | Steel Pipe Thickness:1.7mm Parameters: 5 x steel pipe 2400×50×50mm Function: Used for bulkhead, fixed bulkhead, to avoid impact on container doors | ||

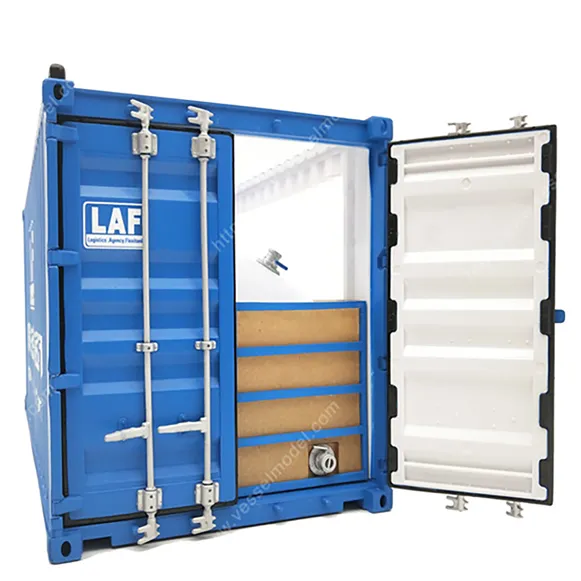

 | Cardboard Bulkhead Parameters: 14 layers of corrugate paper H235x150x1.5cm Function:Used as bulkhead to prevent the impact of flexitank on container doors | ||

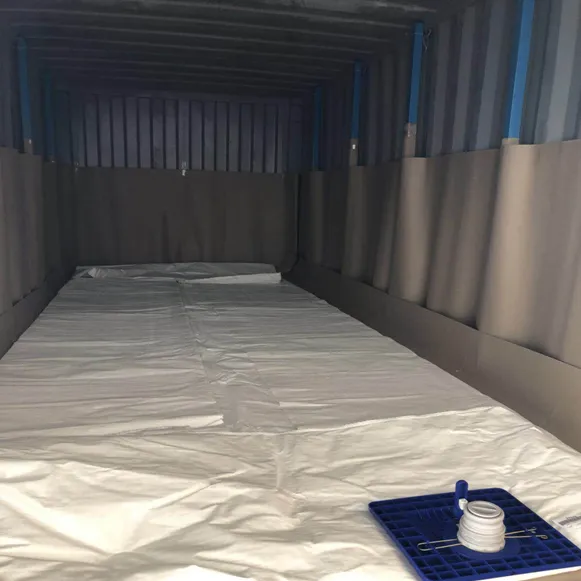

 | Corrugated Paper Parameters:140cmx3000cm 3 layers,1.8mm thickness Function: Used to install the inner wall and floor of the container to protect flexitank | ||
| Size | 1.7*2.35*5.8m(20" container)2.1*2.4*11.8m(40" container) |
| Fabric | 3-6 layers, out layers is pp woven fabric with lamination, inner layer is PE film from 125microns to 220 microns |
| Capacity | 14000 liters to 24000 liters |
| Inlet&Outlet | 3" ball & butterfly pp valve |
| Accessories | Steel pipe 6pcs, Baffle 1pc, Alarm Mark 1pc, Corrugated paper 28m, Paper-board 1pc, Adhesive tape 1pc. |
| Packing | 20" container can load 65 sets, 40" can load 170 sets |
| Usage | Oil, water, wine, silica gel, molasses, juice, base oil, bitumer, syrup, Non-hazardous liquid |
| Advantages | No clean and repair cost, Minimal disposal cost lighter than drums FDA approved, Seamless construction, Minimal residue on discharge food-grade, Chemical resistant cost efficient, Absorbent and styetchable material |
Durable
Long life
Anti mold
Anti-static
Recyclable
Vivid colour
Air tightness
Antibacteria，
Self cleaning
UV resistence
Anti-bacterial and anti-mold: Using special chemical additives, we ensure that all our products have excellent anti-bacterial and anti-mold effects. They do not develop mold in humid and warm environments, maintain surface stability, produce no unpleasant odors, and prolong the service life of the product.
Anti-algae: GS PVC vinyl is widely used in water-contact applications, especially for water storage containers, aquaculture and fish farming, where algae prevention is required. During production, GS specially adds anti-algae additives to the top and bottom layers, making the tarpaulin highly algae-resistant.
100% waterproof: GSTARP products are 100% waterproof. Special surface treatment forms the first defense layer of the PVC fabric, ensuring no water molecules can penetrate. The top and bottom surface layers are fully integrated with the base material to form a solid structure. Finally, the base fabric is coated with adhesive, allowing glue and coating molecules to bond tightly. Through these three advanced processes, GS PVC vinyl achieves 100% waterproof performance.
Acid resistance: GSTARP factory produces PVC fabric via lamination or coating with imported German equipment and advanced technology. Special additives are incorporated during production to make the product acid-resistant. Customers can safely use it to store acidic and alkaline substances.
