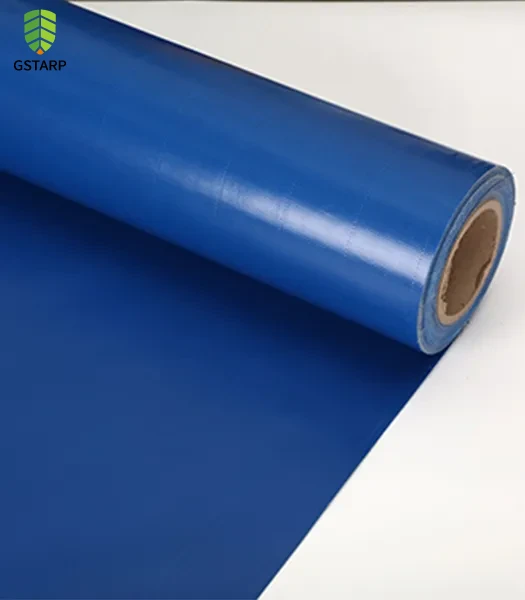

Heavy-Duty PVC Tarpaulin Roll Material

PVC Tarpaulin Rolls for Tent, Truck Tarp and Cover Manufacturers

We manufacture reinforced PVC-coated polyester tarpaulin rolls for professional fabricators serving transportation, shelter, industrial, agricultural and outdoor-cover markets. Our core range includes 610gsm (18oz/yd²) general-purpose heavy-duty material and 680gsm (20oz/yd²) blockout material. Both grades can be supplied in multiple base-fabric constructions to match strength, handling and price requirements.

The 610gsm 18oz material is the most versatile product in the range. It can be cut, high-frequency welded, hot-air welded, sewn, hemmed and fitted with eyelets or D-rings to produce truck tarps, tent roofs and walls, cargo covers, machinery covers, temporary shelters and other durable waterproof products. The 680gsm 20oz blockout material adds complete opacity for tent, partition, privacy, light-control and premium cover programs.

For every project, confirm total weight, yarn, weave density, finished width, roll length, color, surface finish, low-temperature requirement, flame-retardant requirement and packing. Final performance is controlled through a signed technical specification and an approved production sample.

Core Product Advantages

• 610gsm (18oz/yd²) and 680gsm (20oz/yd²) factory roll supply

• 1000D polyester reinforcement with 9×9, 14×14 or 20×20 constructions

• High measured tensile, tear and coating-adhesion strength

• 610gsm: high-strength universal grade for tents, truck transportation and general covers

• 680gsm blockout: complete light blocking for opaque structures and covers

• Waterproof PVC surface with anti-UV, color-fastness and anti-mold options

• Weldable and fabrication-ready roll stock

• Custom color, width, roll length, surface treatment and export packing

• Mexico-proven 1.55m × 50m program with mature repeat-order performance

• Technical sample approval and batch specification control

PVC Tarpaulin Roll Specifications

All values above are based on supplied physical-data sheets. Nominal weight and thickness tolerances, finished width, roll length, color, flame-retardant standard and additional treatments must be confirmed on the final quotation and order specification.

Measured Physical Data - 610gsm 18oz

Measured Physical Data - 680gsm 20oz

High-Strength Mexico-Market Construction

Our 610gsm 18oz and 680gsm 20oz 1000D 14×14 constructions were specially developed for the Mexican market after years of repeat production and field feedback. The design focuses on universal converting performance plus stronger resistance to pulling, tearing and coating separation.

Compared with the company's conventional benchmark product, the customized construction delivers approximately 20-30% higher tensile strength, approximately 100% higher tear strength and approximately 25% higher coating adhesion. These percentages are internal comparative results; the published technical table should always show the actual measured values and identify the relevant test method.

This strength package is the core reason the material has achieved long-term repeat business in Mexico. It gives fabricators one mature roll material that can serve tent, truck-transport and general-cover product lines instead of requiring a different fabric for every application.

Mexico Export Case Study: More Than 300 Containers in One Year

Project Overview

A long-term Mexican-market program required a heavy-duty PVC tarpaulin roll that could support several downstream products, maintain stable strength and run reliably through local welding and fabrication operations. The program reached more than 300 containers shipped in a single year, demonstrating mature production capacity, repeatability and sustained market acceptance.

Customer Challenge

The buyer needed a material strong enough for demanding transport and outdoor-cover use, yet flexible and universal enough for tent and general fabrication. Standard market grades did not provide the desired combination of tear resistance, coating adhesion and repeat-order stability.

Customized Solution

We standardized the program around a 1.55m × 50m roll and a 1000D 14×14 reinforced polyester base. The 610gsm version became the universal high-strength grade. The 680gsm version added a complete-blockout structure for opaque tent and cover applications. Blue and white were organized as the main repeat colors, supported by controlled raw materials, physical testing and export packing.

Performance Result

The program moved from specification development to stable high-volume repeat supply. More than 300 containers shipped in one year, while the same material platform continued serving multiple end-use categories. The case demonstrates not only production volume, but also the value of a proven specification that has passed years of market use.

680gsm 20oz Complete-Blockout PVC Tarpaulin

The 680gsm 20oz blockout grade is designed to prevent light from passing through the material. A light-blocking layer is integrated into the laminated construction so the finished roll remains opaque even when the front and back colors are light. This makes it different from an ordinary white or colored PVC tarp that may still transmit light under strong illumination.

Why Complete Blockout Matters

• Creates a darker and more controlled interior for tents and temporary structures

• Prevents shadows, stored goods or internal activity from being visible through the cover

• Improves privacy for partitions, enclosures and site screens

• Reduces visible light spots where normal coating may appear thin

• Supports premium opaque covers and two-side color programs

• Helps maintain a more uniform exterior appearance under strong sunlight

Recommended Blockout Applications

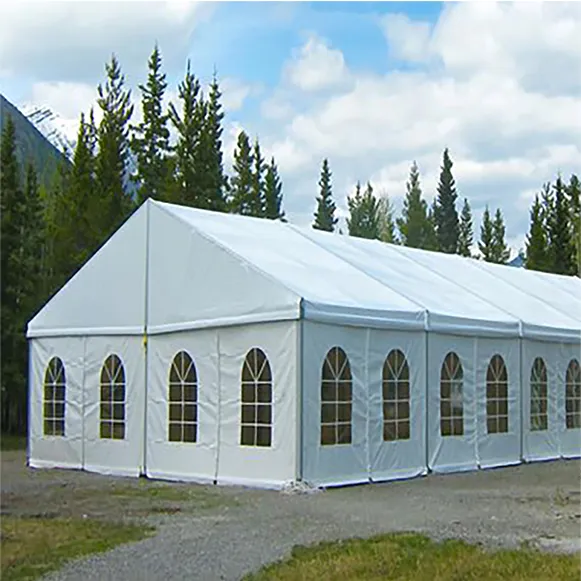

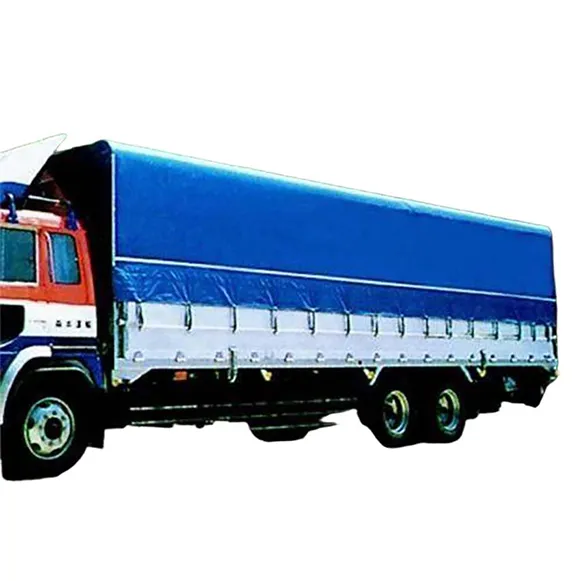

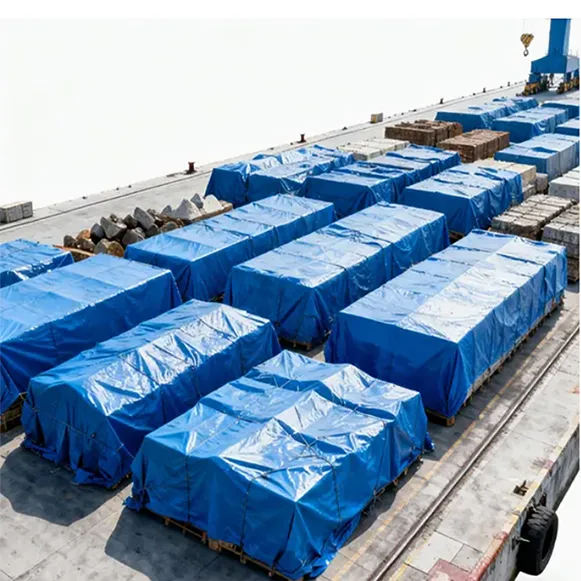

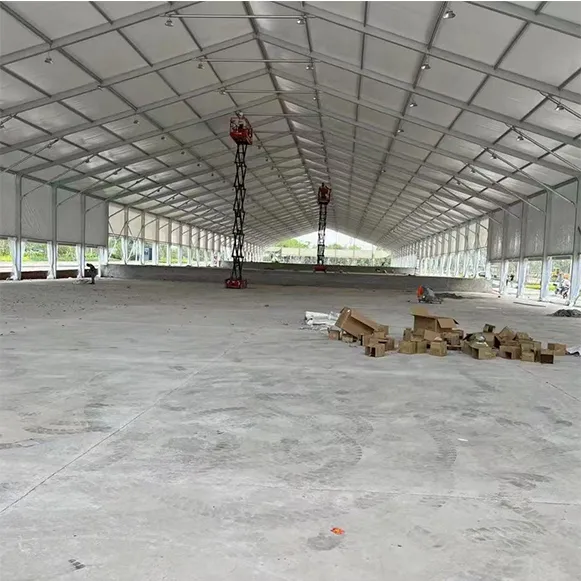

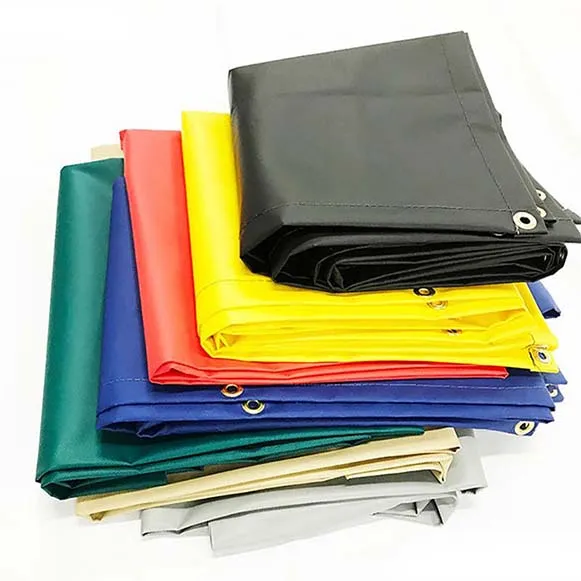

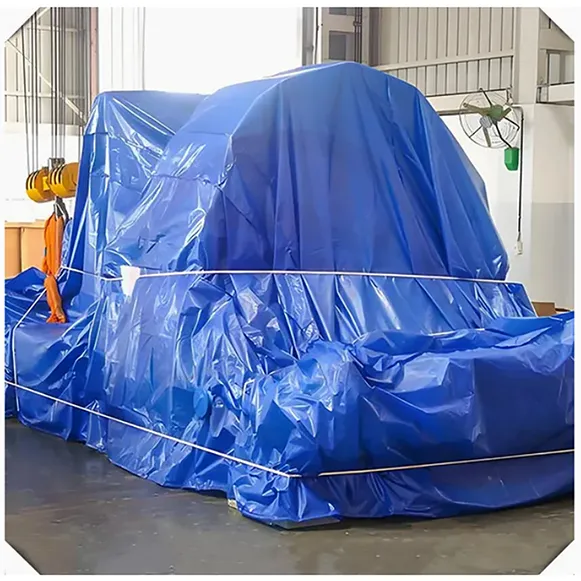

Commercial tents, event structures, tent sidewalls, warehouse partitions, privacy screens, truck covers, machinery covers, agricultural covers, outdoor storage covers and other products where opacity is a functional requirement.

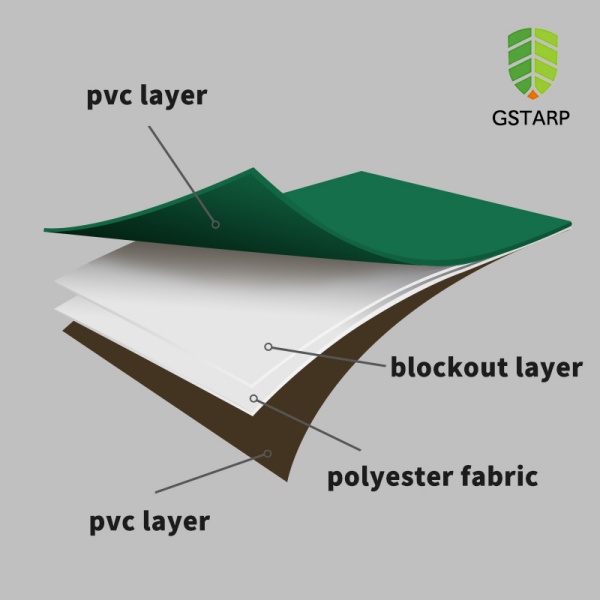

PVC Tarpaulin Roll Structure

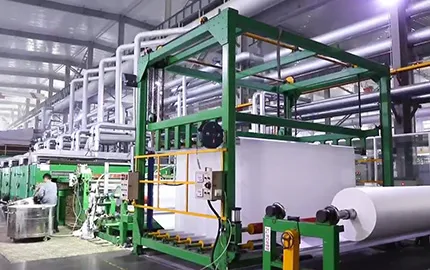

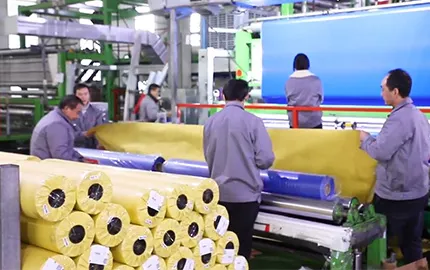

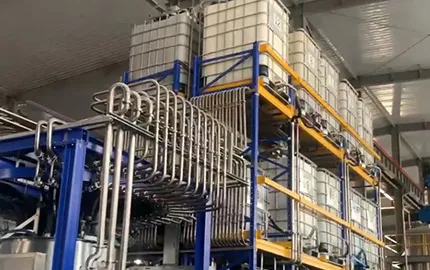

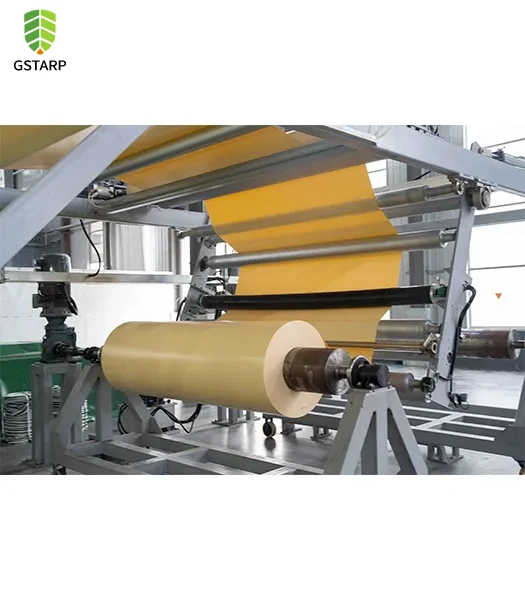

Production Process

Quality Control for PVC Tarpaulin Roll Stock

Tensile Strength

Tensile testing indicates how the reinforced fabric resists pulling load in warp and weft directions. It is important for tensioned tents, tied-down truck covers and large fabricated sheets. Report the actual result in N/5cm together with the test method.

Tear Strength

Tear strength measures resistance to the growth of a cut or local damage. It is especially relevant around eyelets, D-rings, hems, corners and high-wear areas. The Mexico-customized 14×14 construction was strengthened specifically in this area.

Coating Adhesion

Adhesion measures the bond between the PVC layer and the polyester base. Stable adhesion helps reduce delamination during welding, folding, repeated handling and outdoor exposure. The ordered surface treatment and test method must be consistent with the approved sample.

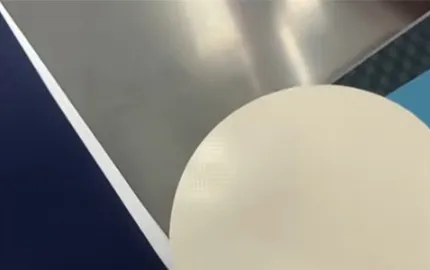

Blockout Verification

For the 680gsm blockout grade, inspect the roll against a strong backlight and record any pinholes, thin spots or light leakage according to an agreed acceptance standard. 'Complete blockout' should be controlled as a functional requirement, not only a color description.

Roll and Visual Inspection

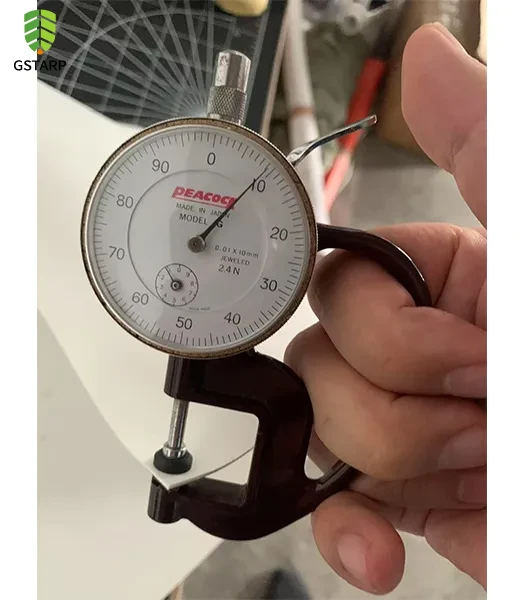

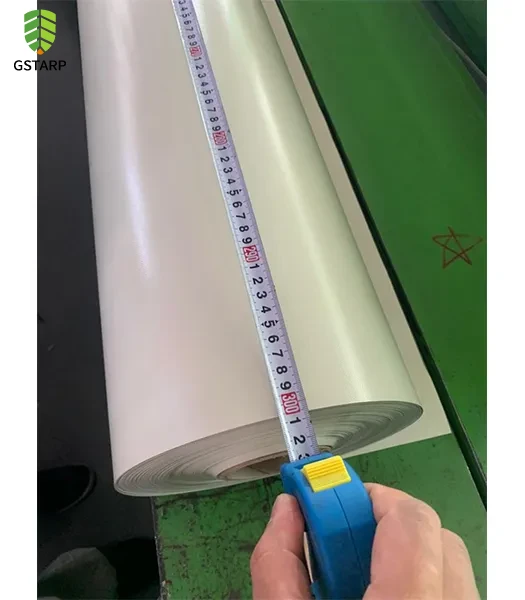

Inspection should cover finished weight, thickness, usable width, roll length, color difference, surface marks, coating uniformity, edge quality, winding, telescoping, core condition, labels and packing. Defect categories and acceptance limits should be agreed before mass production.

How to Select the Right PVC Tarpaulin Grade

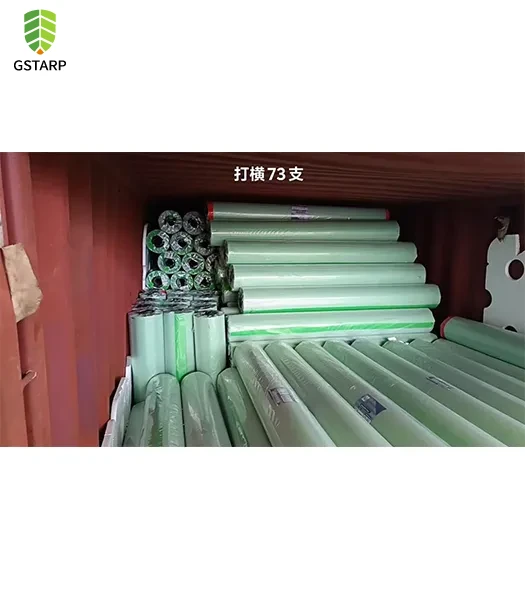

Packaging, Loading and Order Information

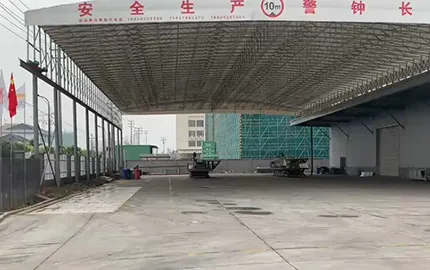

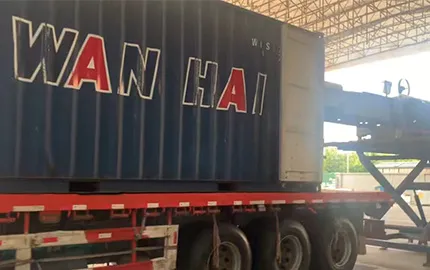

Standard Mexico-program roll size is 1.55m × 50m. Other widths and lengths can be discussed according to production capability, roll weight, container loading and customer equipment. The final packing plan may include a rigid paper core, inner protective film, woven outer wrap, end protection, labels, shipping marks and palletization.

Information Required for a Quotation

• Application and destination market

• 610gsm 18oz or 680gsm 20oz blockout

• Yarn and weave: 1000D 9×9, 14×14 or 20×20

• Finished width and roll length

• Color and front/back surface requirement

• Required tensile, tear and adhesion values

• UV, anti-mold, low-temperature or flame-retardant requirement

• Quantity, destination port, Incoterm and packing

• Sample, labeling and private-brand requirements

Frequently Asked Questions about PVC Tarpaulin Rolls

What is 610gsm PVC tarpaulin called in North America?

It is commonly sold as 18oz vinyl-coated polyester, 18oz vinyl tarp material or 18oz PVC tarp fabric. The precise expression is 18 oz/yd².

What is the main difference between 610gsm and 680gsm?

The 610gsm grade is the core universal heavy-duty material. The 680gsm range is heavier, and the specified blockout constructions are completely opaque for applications requiring zero light transmission.

Is the material supplied as finished tarps?

This page is for bulk roll material. Customers cut, weld, sew, reinforce and fit hardware locally to manufacture tents, truck tarps and covers.

What is the standard Mexico-market specification?

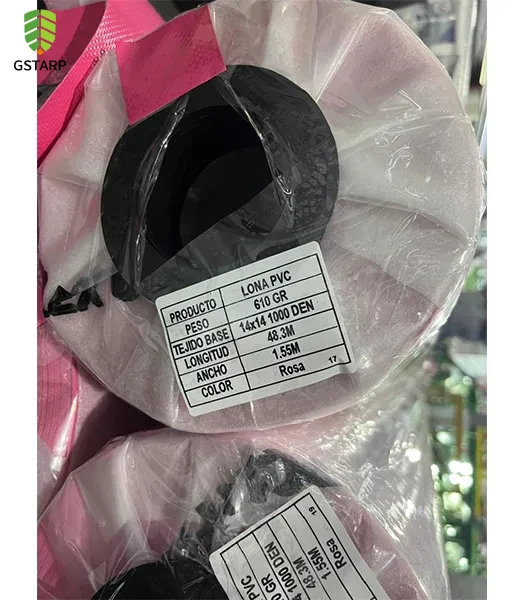

The proven program uses 1.55m × 50m rolls, 1000D × 1000D, 14×14 construction, mainly in blue and white, with 610gsm and 680gsm options.

Why is the 14×14 product different from a conventional market grade?

It was customized with higher tensile, tear and adhesion performance. Internal comparison indicates approximately 20-30% higher tensile, 100% higher tear and 25% higher adhesion, while the technical sheet provides the actual measured values.

Can 610gsm material be used for both tents and truck tarps?

Yes. Its strongest commercial advantage is versatility. Final suitability still depends on fabricated design, reinforcement, hardware, welding and the applicable fire or transport requirement.

Is the 680gsm product really blockout?

The designated 680gsm laminated blockout constructions are designed for complete opacity. Buyers should approve a backlight sample and include blockout inspection in the signed specification.

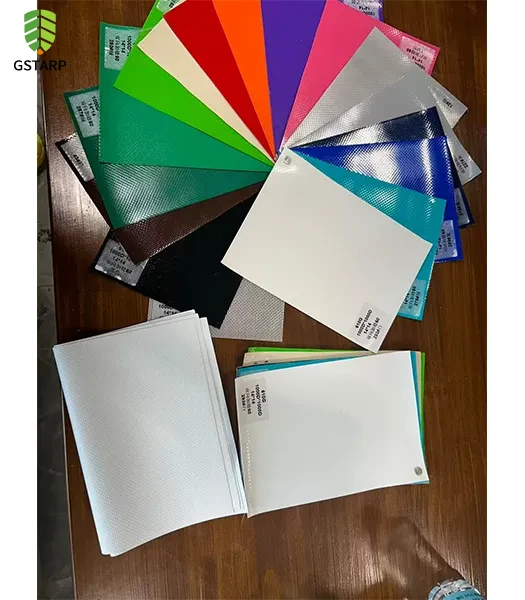

Can colors be customized?

Yes, subject to minimum quantity and sample approval. Blue and white are established repeat colors for the Mexico program.

Can the rolls be welded?

PVC-coated and laminated polyester fabrics are commonly fabricated by high-frequency or hot-air welding. A processing trial should confirm the correct equipment settings.

Are flame-retardant grades available?

Supplied sheets identify self-extinguishing behavior for selected grades and NFPA 701 for the 680gsm blockout sheets. The current report, exact construction and destination requirement must be verified before making a compliance claim.

What temperature range is available?

The supplied sheets state -30 to +70°C for the 610gsm grades and -40 to +70°C for the 680gsm blockout 9×9 and 14×14 grades.

What should be approved before mass production?

Approve weight, thickness, usable width, roll length, color, surface, strength values, blockout or FR requirement, winding, packing and a signed reference sample.

What is the MOQ?

MOQ depends on construction, width, color, treatment and packing. Send the target specification and annual demand for confirmation.

Can you support high-volume repeat orders?

Yes. The Mexico program exceeded 300 containers in one year, supported by a mature specification and repeat-production controls.

What information should I send for a fast quotation?

Send grade, yarn/weave, color, width, roll length, quantity, application, performance requirements, destination port and Incoterm.

Request a Quote for 610gsm and 680gsm PVC Tarpaulin Rolls

Send your required weight, yarn and weave, width, roll length, color, order quantity, application and destination port. We will confirm the producible specification, sample plan, packing, loading quantity, lead time and factory quotation.
